BLYST Nano tiny ARM Cortex-M4F module with Bluetooth 5.0 and more

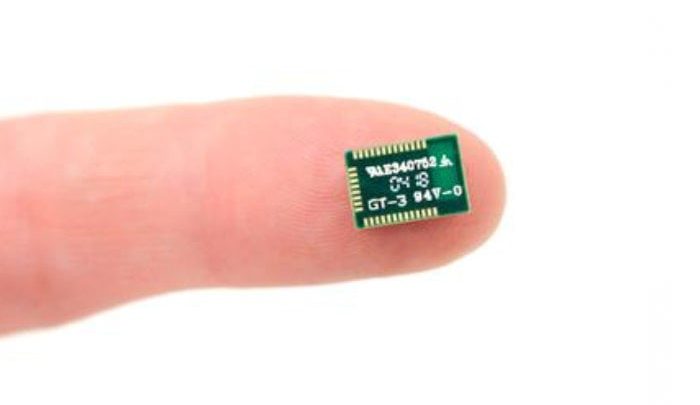

BLYST Nano tiny ARM Cortex-M4F module

Developers and engineers may be interested in a new tiny ARM Cortex-M4F module which has been created offering Bluetooth 5.0 connectivity, Bluetooth Mesh and 30 input and outputs. The BLYST Nano module is now available to purchase priced from $17 with free shipping throughout the US included for worldwide shipping available for an extra $8. Preorders are now available and worldwide shipping is expected to commence from November 30th, 2018 onwards. Watch the demonstration video below to learn more about the inspiration, specifications and features of the BLYST Nano created by by I-SYST inc.

The nRF52832 incorporates a powerful Cortex-M4F processor enabling the most demanding applications with complex arithmetic requirements to be realized in a single chip solution. The IC supports DSP instructions, a Floating Point Unit (FPU), single-cycle multiply and accumulate, and hardware divide for energy-efficient processing of computationally complex operations.

BLYST Nano Module Features

Built-in ceramic antenna
Built-in coils for low power DC/DC mode
Built-in 32 MHz & 32.768 MHz crystal for low power
Dimensions: 10 x 7 x 1.6 mm
No extra PCB spaces or any external components required on users’ application board
All I/O pins of the nRF52832 are exposed to pads around the edges of the module to take full advantage of the nRF52832 and for easy assembly without compromise
FCC & CE certified

nRF52832 Features

Single chip, highly flexible, 2.4 GHz multi-protocol SoC
32-bit ARM Cortex-M4F Processor
1.7 V to 3.6 V operation
512 kB flash + 64 kB RAM
Supports concurrent Bluetooth low energy/ANT protocol operation
On-chip NFC tag for Out-of-Band (OOB) pairing
Up to +4 dBm output power
-96 dBm sensitivity, Bluetooth Low Energy (BLE)
Thread safe and run-time protected
Event driven API
On air compatible with nRF24L and nRF24AP series
2 data rates (2 Mbps/1 Mbps)
PPI – maximum flexibility for power-efficient applications and code simplification
Automated power management system with automatic power management of each peripheral
Configurable I/O mapping for analog and digital I/O
3 x Master/Slave SPI
2 x Two-wire interface (I²C)
3 x PWM
AES HW encryption
12-bit ADC
Real Time Counter (RTC)
Digital microphone interface (PDM)

For more details and purchasing options jump over to the Crowd Supply website by following the link below.

Source: Crowd Supply
